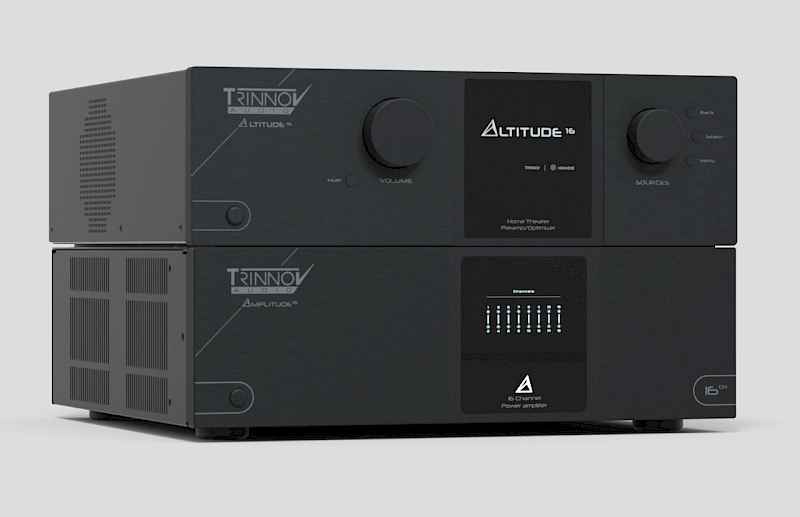

Trinnov Audio Altitude 16 20 Channel Home Cinema Processor HDMI 2.1
£17399
ON DEMONSTRATION. We are Trinnov Audio Level 1 & 2 Certified.
Free UK Set Up and Calibration included with every purchase. We are Trinnov Audio certified and experts.
The groundbreaking Altitude32 processor set the bar high -- and we didn’t lower it for the Altitude16. Delivering the same processing capabilities and sound quality as the Altitude32 processor, the Altitude16 makes Trinnov’s best-in-class performance accessible to a wider audience who's immersive audio system requirements will not exceed 20 channels.
Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24 bit / 96K audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.
OBJECT BASED DECODING
- Dolby Atmos® Native Decoding & Upmix: Up to 20 discrete channels
- Auro-3D® Native Decoding & Up-mix (Auromatic): Up to 13.1
- DTS:X® Pro: Up to 20 discrete channels
- Speaker Layouts support: All
- IMAX Enhanced: Yes
HDMI CONNECTIVITY
- Output 1: HDMI 2.1 / HDCP 2.3
- Output 2: HDMI 2.1 / HDCP 2.3
- Inputs: 8
- HDR Support: HDR10, HDR10+, HLG, and Dolby Vision
- Maximum Resolution: 4K 120Hz/8K 60Hz
- Maximum Bandwidth: 40Gbps on all inputs and outputs
- Frame rates supported: 4K 24/25/30/48/60/100/120, 8K 24/25/30/48/60
- ARC / eARC: Available on Output 1
- OSD: Main information displayed on-screen
DIGITAL AUDIO CONNECTIVITY
- S/PDIF Inputs: x4 (2 optical, 2 coaxial)
- S/PDIF Outputs: x2 (1 optical, 1 coaxial)
- +4 Outputs: By combining Analog and S/PDIF outputs
- Audio Network: Dual ports (for future use)
ANALOGUE AUDIO CONNECTIVITY
- Microphone input: 1x 5 Pin XLR for 3D Microphone
- Balanced inputs: 1x Stereo XLR
- Unbalanced inputs: 1x Stereo RCA
- Balanced outputs: 16x XLR
- Input Impedance: 20k Ohms / 10k Ohms
AUDIO PROCESSING
- Data precision: 64 bits, floating point
- Max Sampling Rate: Native, up to 96kHz
HARDWARE
- Processor: Intel multi core hyper threaded
- ADC Resolution / Sampling Rate: 24 bits/96 kHz
- DAC Resolution / Sampling Rate: 24 bits/192 kHz
- A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
- D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
- Reference Level: +18dBu @ 0dBFS (Balanced)
- Clock / Jitter: attenuation > 50 dB above 100Hz
- Cooling system: Custom heat sinks + additional silent fans
- Safety Components: AntiPop relays on each output
POWER SUPPLY
- Power requirement: 100 - 240v (auto selecting)
- Power consumption: 76W Max
- Thermal conversion: 260 BTU/h Max
- Mains fuse: 2x 1A slow blow
- Internal PSUs: Separated supplies for Audio and Processing
WEIGHT & DIMENSIONS
- Dimensions (W x H x D) mm: 438 x 139 x 430
- Dimensions (W x H x D) inches: 17 1/4" x 5 1/2" x 17 15/16"
- Shipping dimensions (L x H x P) cm: 74 x 59 x 30
- Weight: 11.30kg / 24.9 lbs
- Shipping weight / volume: 18.2kg / 0.131 M3
- Rackmounting: 3U - Rack Ears Included
WARRANTY
- Standard Warranty: 5 year
- Transferable: Yes
