Trinnov Audio Altitude Ci 8 - 64 Channel Home Cinema Processor HDMI 2.1
£8818 (subject to required channel count)
ON DEMONSTRATION. We are Trinnov Audio Level 1 & 2 Certified.
Free UK Set Up and Calibration included with every purchase. We are Trinnov Audio certified and experts.
BUILT FOR SCALABLE, NETWORKED INTEGRATION
Dual AoIP Support for Maximum Compatibility
AltitudeCI supports both AES67 and DanteⓇnatively — combining the interoperability and precision required in DCI and pro audio environments with the simplicity and plug-and-play integration that Dante offers, including direct connection to digital amplifiers like the Amplitude16.
Three Ethernet Ports, Fiber-Ready
Featuring three independently configurable Ethernet ports — one RJ45 and two SFP cages (fiber or copper) — AltitudeCI adapts to any network scenario. These ports support redundant AoIP streams, segregated networks, or integrated switch mode for optimal flexibility and reliability.
From 8 to 64 Channels, Step by Step
Available from 8 to 32 outputs, configurable in 2-channel steps to match each project precisely. For larger systems, a 64-channel build-to-order model with enhanced hardware will be offered from 2026 for demanding, large-scale installations.
BUILT FOR ANY SYSTEM CONFIGURATION
AltitudeCI offers unmatched output flexibility with 8 balanced analog outputs, up to 32 channels of AES/EBU digital audio (input and output), and native Audio over IP support via DanteⓇ and AES67.
No optional I/O cards or external A/D or D/Aconverters are required, thanks to its flexible routing matrix, which lets integrators build hybrid systems that combine analog, digital, and networked outputs.
TAILORED CONFIGURATIONS FOR EVERY PROJECT
From high-end stereo setups to DCI-grade private cinemas, AltitudeCI adapts to nearly any project — with channel configurations available from 8 to 32 outputs, adjustable in 2-channel increments, and built-to-order models supporting up to 64 channels starting in 2026.
Whether you’re designing a compact media room or a multi-row theater with 30+ speakers, AltitudeCI offers the performance, routing freedom, and format precision required for today’s most ambitious installations.
The examples below illustrate common use cases, each system can be tailored precisely to your project’s requirements.
Built on the same core architecture across all models, it’s a platform that scales with your vision.
AUDIO PROCESSING
- Channel Count: Available from 8 to 32 outputs
- Future Option (2026): Up to 64 channels (build-to-order)
- Architecture: Software-based, 64-bit floating point processing
- Sample Rate: Up to 192kHz (channel dependent)
IMMERSIVE AUDIO FORMATS
- Decoded Formats: Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced
- Upmixers: Dolby Surround, DTS Neural:X, Auro-Matic
- Flexibility: Full-format decoding with channel-to-speaker assignment
HDMI CONNECTIVITY
- Inputs / Outputs: 4x HDMI Inputs, 2x HDMI Outputs
- Version: HDMI 2.1 with HDCP 2.3
- Max bandwidth: 40 Gbps on all inputs and outputs
- 8K Support: Up to 8K60 (4:2:0 chroma only)
- 4K Support: Up to 4K120 (with full 4:4:4 chroma)
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 (format-dependent)
- HDR Support: HDR10, HDR10+, Dolby Vision, HLG
- Gaming Features: VRR, FRL and ALLM
- Other Features: On-screen display (OSD), full pass-through, ARC/eARC

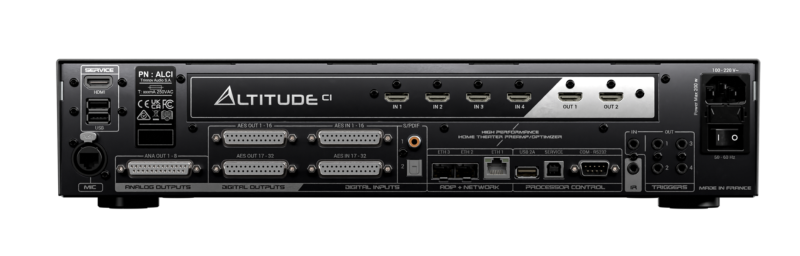

AUDIO INPUTS
- Dante: Up to 32 input channels
- AES/EBU: Up to 32 inputs via 2x DB25
- S/PDIF: 1x coaxial + 1x optical
- 3D Microphone: 1x Ethercon input (provides power)
- Independence: All inputs are independent
- Future AoIP Input Capacity (2026): Up to 64 inputs (build-to-order)
AUDIO OUTPUTS
- Dante: Up to 32 output channels
- AES/EBU: Up to 32 outputs via 2x DB25
- Analog: 8x balanced outputs via 1x DB25
- Analog Output Level: +18 dBu max
- THD+N (analog output): 110dB (1kHz 0dBFS, 20kHz BW)
- Dynamic Range (analog output): 115dB A-weighted (ref +18dBu)
- Channel Assignment: Any output channel to any physical audio output
- Output Types: Analog, digital or AoIP
NETWORK ARCHITECTURE & AOIP
- AoIP Format: Dante (+AES67 compatibility)
- Compatibility with Dolby media servers: via AES67
- Ethernet Ports: 3x Gigabit ports: 1x RJ45, 2x SFP cages
- SPF module: 1x RJ45 provided
- Networking Modes: Integrated switch, isolated, or redundant paths
- AoIP Simplification: DirectLink supported with Amplitude16
CONTROL & INTEGRATION
- Full UI Access: macOS/Windows app or Web UI
- Mobile Remote Control: iOS & Android app
- Control Drivers: Crestron, Control4, Savant, RTI, AMX, Nice, AVA
- Physical Control: IR Input (Jack 3,5", IR receiver included), RS-232
- Triggers: 1x input, 4x programmable outputs
- IR Remote Control: Optional
- Remote Management: Partner access through via my.trinnov.audio
- Front panel: 5-inch touchscreen
- Power Modes: Standby & fast boot (firmware-ready)
DIGITAL ACOUSTIC OPTIMIZATION
- Trinnov Technologies: Trinnov Optimizer, WaveForming & Remapping
- Calibration Workflow: Step-by-step guided setup
- 3D Mic Integration: Automatic compensation file upload
AUDIO STREAMING
- Roon: Certified Roon Ready endpoint (soon)
- Audirvãna: Certified plãys with audirvãna (soon)
- UPnP: Flac, WAV, MP3, ogg
POWER & THERMAL
- Power Supply: 100-240V auto-switching
- Max Consumption: 140W (0,5W idle)
- Cooling: Temperature-controlled exhaust fans
- Heat Output: 480 BTU/hr (max load)
- Mains fuse: 2x T800mA
CHASSIS & DIMENSIONS

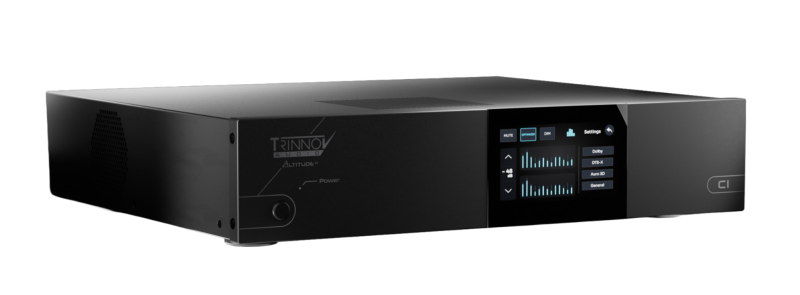

- Form Factor: 2RU rack-mountable
- Net Weight: 8.6kg / 19 lbs

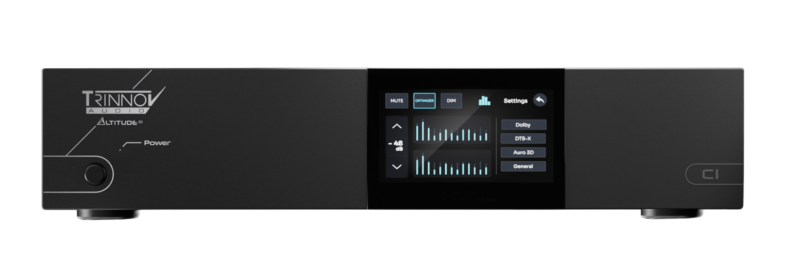

- Front Plate: Smoked-glass touchscreen in brushed aluminum
- Design: Minimalist, with removable ears/feet
- W x H x D (no ears/feet): 438 x 88 x 371 mm / 17.24 x 3.46 x 14.61 in
- W x H x D (with ears/feet):
