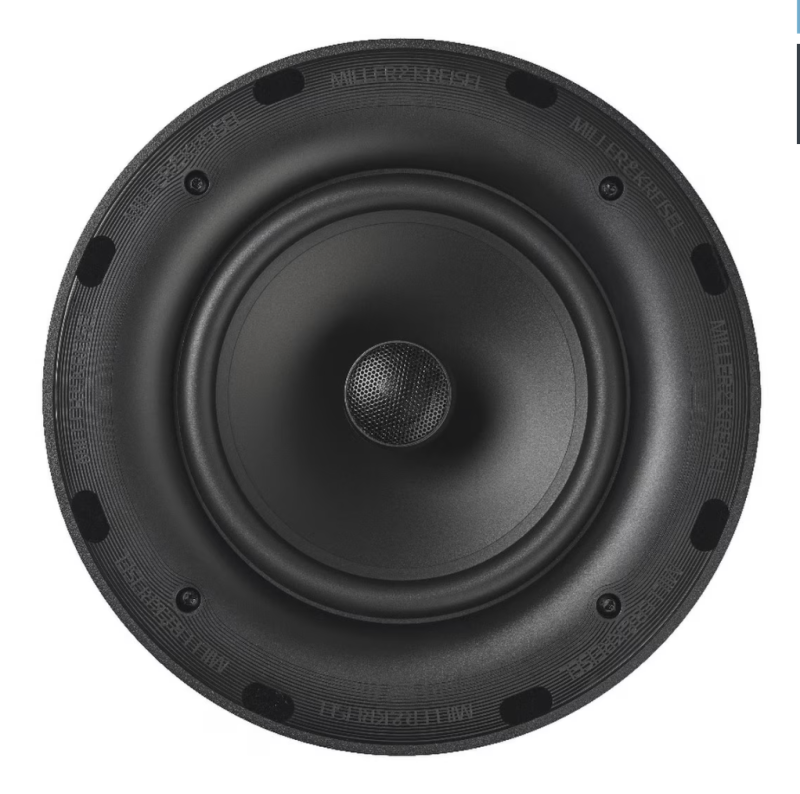

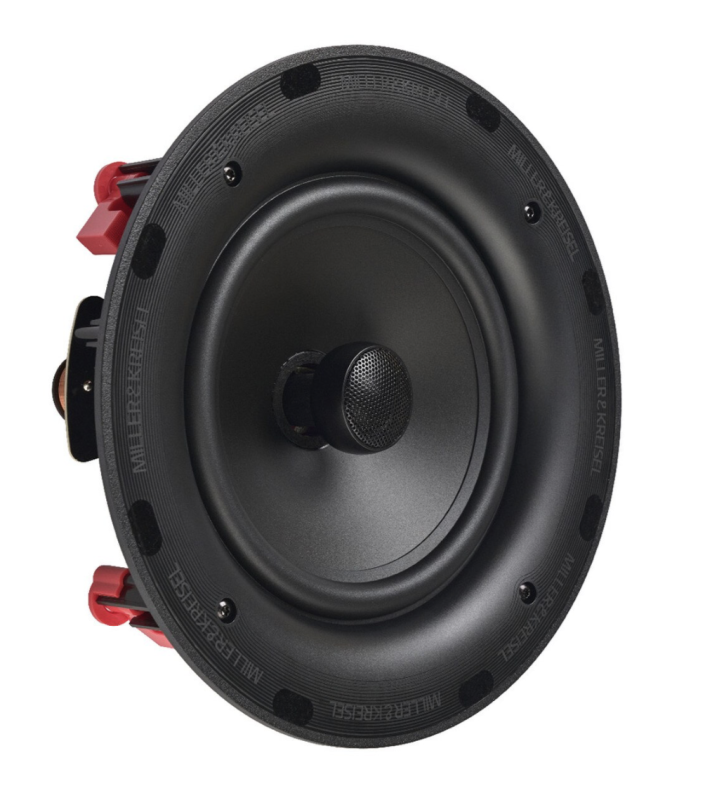

M&Ks IC80 features an 8" coaxial driver and is designed for seamless integration, these custom installation speakers deliver M&K’s signature sound quality for multi-room audio, commercial applications and dedicated Atmos channels in home cinemas.
| Frequency Response | Without Back Can: 40-20 Khz With Back Can: 60-20 Khz |

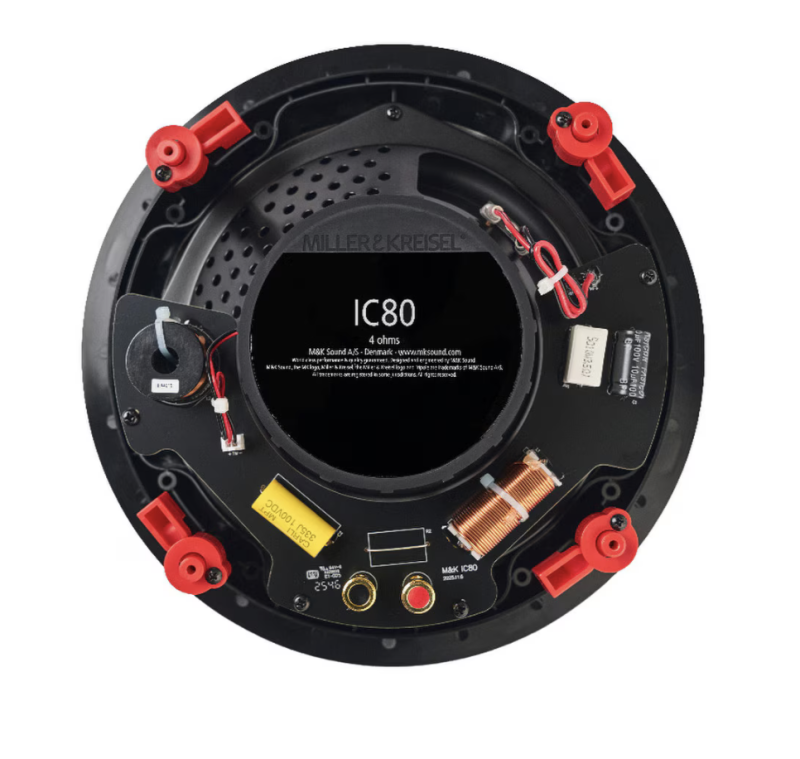

| Crossover frequency | 3.7Khz |
| Tweeter | 1" Coated Silk dome / with swivel function |
| Woofer | 8" Mineral filled polypropylene |
| Nominal system impedance | 4 ohm |
| Power handling | 80W -150W Peak |
| Recommended amp power | 25-300 watt |
| Sensitivity | 91 dB (Average SPL 2.83 volt / 1 mtr, on axis 150-10Khz) |
| System principle | In-wall / sealed enclosure |
| Connection | Push terminal gold plating, up to 4mm cable |
| Cut out | 10 inch / 254 mm |
| Speaker OD | 10.95 inch / 278 mm |

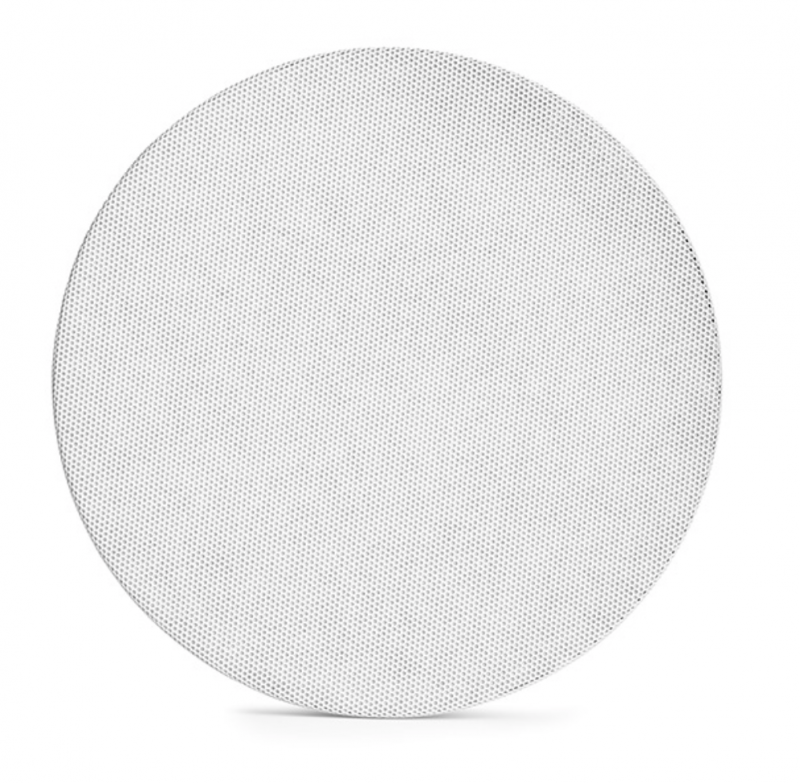

| Grill OD | 11.02 inch / 280 mm |
| Depth | Without Back Can: 114mm / 4.49" With Back Can: 257mm / 10.12" |
| Weight | Without Back Can: 3kg / 6.61lbs With Back Can 4.9kg / 10.8lbs |
