MoFi Electronics SOURCEPOINT V10 MASTER EDITION FLOORSTANDING SPEAKERS [PAIR]
£8800
On Demonstration
The SourcePoint V10 Master Edition is a ground‑up evolution of our SourcePoint 10 platform. Andrew Jones has added twin 10″ woofers and dual rear‑firing passive radiators to offload deep bass, freeing the concentric driver to focus on midrange and treble. The result is thunderous low‑end extension, lifelike vocal presence, and crystal‑clear highs. SourcePoint V10 Master Edition is housed in a resonance‑free, multi‑chambered cabinet.
0 DRIVERS. 2 SPEAKERS. THE POWER OF V10.

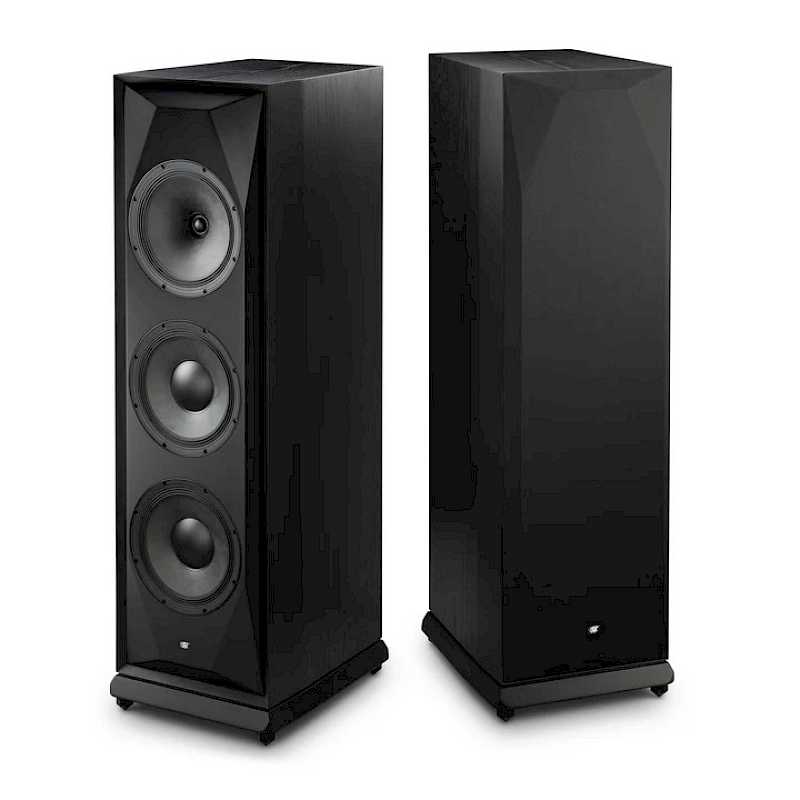

Ten meticulously crafted 10″ drivers (five in each cabinet) work in perfect harmony to deliver the V10’s signature blend of scale, speed, and precision. Each speaker houses a concentric midrange/tweeter, twin woofers, and rear‑firing dual passive radiators, ensuring every part of the spectrum is handled by a dedicated element. The result is an expansive, room‑filling soundstage with earth‑shaking bass, lifelike midrange detail, and sparkling highs all presented with seamless integration and commanding authority.

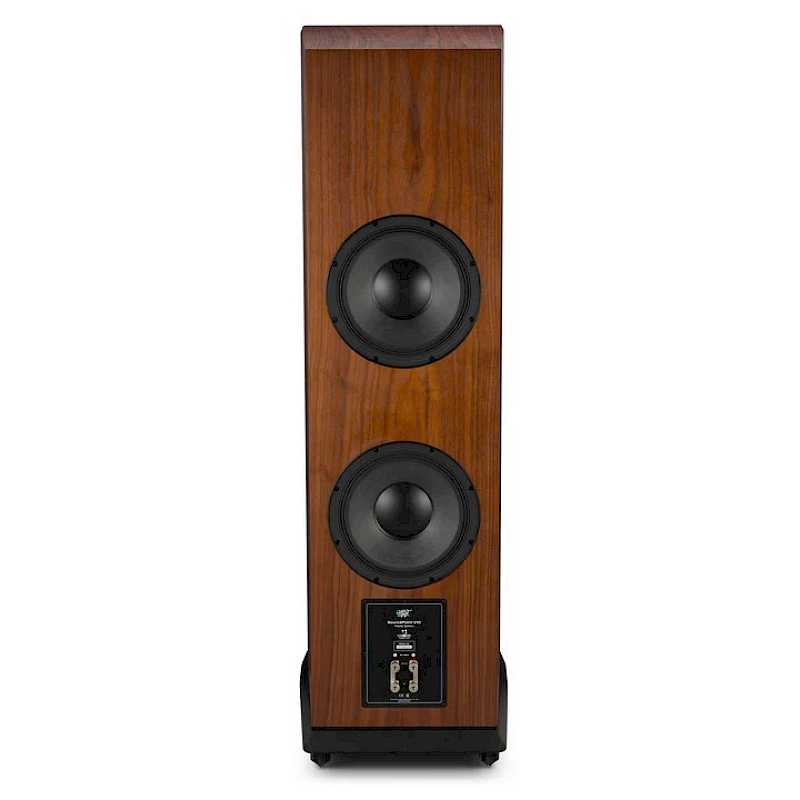

RADIANT RESONANCE: DUAL 10″ PASSIVE RADIATORS
Harnessing the same displacement power as a large bass port but with far greater control, our two hefty 10″ passive radiators reinforce low frequencies down to 27 Hz without adding distortion or turbulence. By shouldering the heaviest demands of deep bass, they allow the woofers to operate in an optimal range—dramatically reducing strain and preserving clarity. Mounted in isolated chambers, these radiators blend seamlessly with the midrange, delivering powerful, articulate lows that feel effortless even at high volumes.
MASTER EDITION TUNABLE CROSSOVER
At the heart of the V10 Master Edition lies a precision‑built, user‑tunable crossover network. It is engineered with polypropylene film capacitors, metalized‑film resistors, and air‑core inductors for ultra‑low distortion. Onboard switches let you dial in treble level to suit your room’s acoustics and listening preferences, while precise phase alignment ensures seamless handoff between woofers, midrange, and tweeter. The result is a bespoke sound signature that balances power with finesse, giving you complete control over how the V10 Master Edition presents your music.
SPECIFICATIONS
Frequency Range:
27 Hz – 30 kHz
Sensitivity:
91 dB (2.83 V / 1 m)
Nominal Impedance:
6 Ohms (4.5 Ohms minimum)
Max Power Handling:
200 Watts
Crossover Frequencies:
130 Hz, 1.4 kHz
System Type:
3‑way passive radiator with concentric driver
Tweeter:
1.25″ soft dome (tunable)
Midrange:
10″ paper cone
Woofers:
2 × 10" paper cone
Passive Radiators:
2 × 10″
Finishes:
Walnut, Black Ash
Dimensions (H × W × D):
48.8″ × 19.9″ × 15.5″
Weight:
160 lbs
FEATURES
• 3-way passive radiator system with a concentric 10″ midrange/tweeter driver for superior sound dispersion.
• Equipped with a concentric 10″ paper‑cone midrange, tunable 1.25″ soft‑dome tweeter, twin 10″ woofers, and dual rear‑firing passive radiators for seamless integration, lifelike detail, and thunderous bass down to 27 Hz.

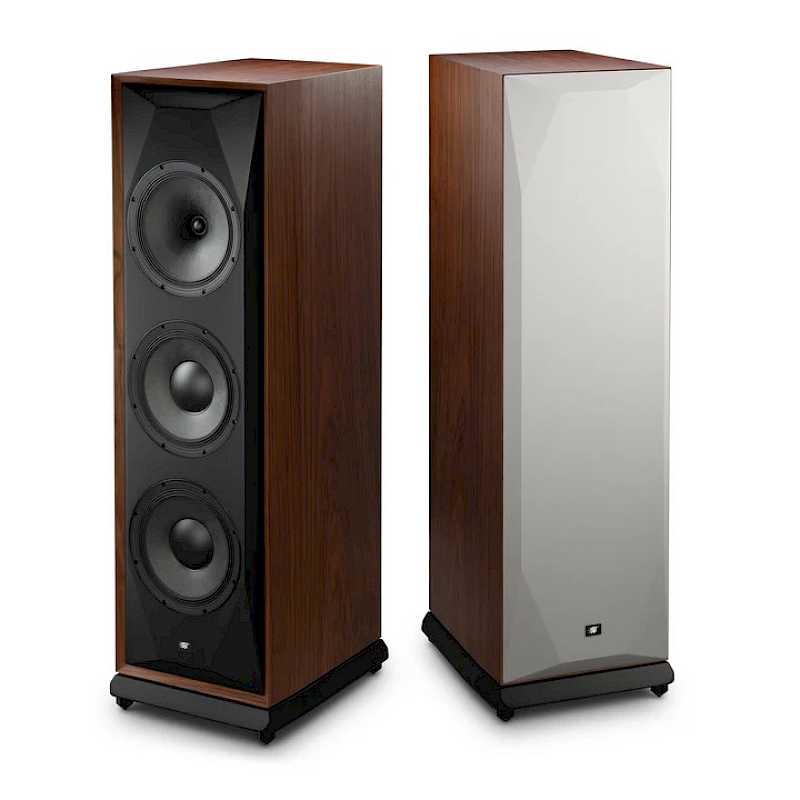

• Available in genuine Walnut or Black Ash real‑wood veneer finishes—book‑matched and sealed with a durable satin clear coat to showcase the natural grain.
• Master Edition crossover network crafted with polypropylene film capacitors, metalized‑film resistors, and air‑core inductors for ultra‑low distortion and flawless frequency handoff.
• Stiffened, multi‑chambered cabinet with a sculpted multi‑faceted baffle minimizes resonance and diffraction for razor‑sharp imaging and dynamic clarity.
